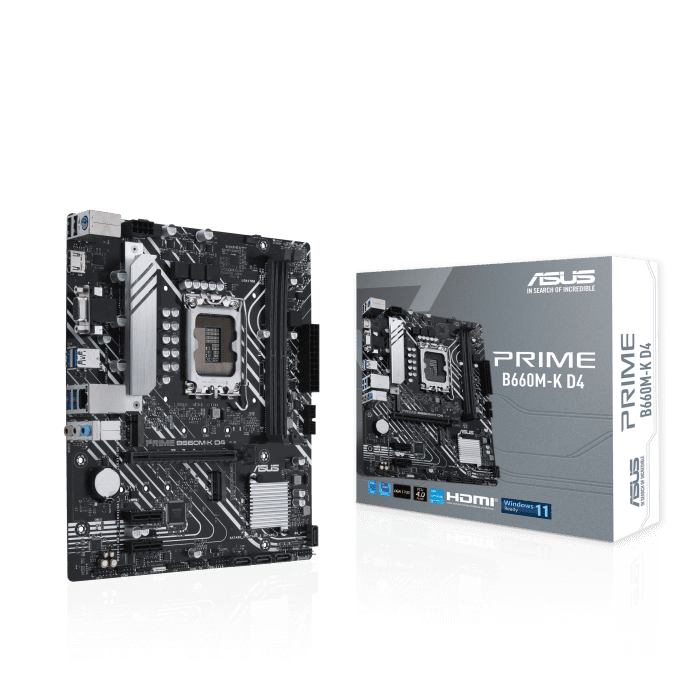

Asus PRIME B660M-K D4
- Intel® B660 (LGA 1700) mATX motherboard with PCIe® 4.0
- 2x M.2 slots
- DDR4
- HDMI®, D-Sub
- Realtek 1Gb Ethernet
- Front USB 3.2 Gen 1
- ASUS Lighting Control
- Please note that this item is collect from store only
| SPECS | |
|---|---|
| MOTHERBOARD | Asus PRIME B660M-K D4 |
| CPU SOCKET | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| RAM SLOTS | 4X DDR4 |
| RAM SLOTS | 1 x D-Sub port
1 x HDMI® port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in HDMI® 2.1. |
| PCIE SLOTS |
Intel® Core™ Processors (14th &13th & 12th Gen) 1 x PCIe 4.0/3.0 x16 slot Intel® B660 Chipset 2 x PCIe 3.0 x1 slots |
| HDD/SSD PORTS |
2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. |
| FORM FACTOR | MICRO ATX |
| CONNECTIVITY | 1 x Realtek 1Gb Ethernet
USB 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| FEATURES |
ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core |
| WARRANTY | 3 YEAR WARRANTY |
| NOTES |
|
